Produktdetails:
|
| Produkt: | Atex Zone 2 Dieselgeneratorsatz Gasfeld und Ölfeld | FabrikPrüfbericht: | Bereitgestellt |
|---|---|---|---|
| Prime Power: | 250 kVA/200 kW | Material: | Edelstahl |
| Kühlmethode: | Geschlossen wassergekühlt | Schmierstil: | Schmieren |
| Gefahrenbereich: | Zone 2/Zone 2 Sicherheit/Zone 1 | Für die Fläche verwendet: | Offshore und Onshore |
| Service: | Technischer Video-Support | Farbe: | Rot/Weiß/Maßgeschneidert |
| Hervorheben: | 250KVA ATEX explosion-proof diesel generator,Zone 2 Zone 1 diesel genset,50Hz 60Hz explosion-proof generator set |
||

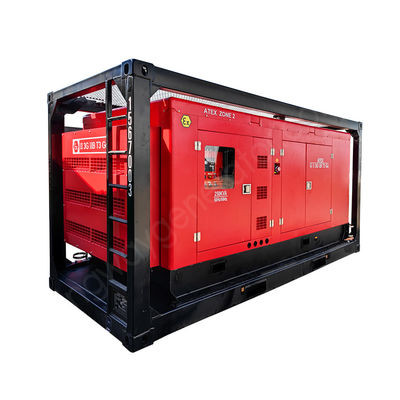

Kingway ATEX Certified Zone 2 Ex Proof equipment is for applications in Hazardous Area ( Zone 2 or Zone 1). The genset products use Cumins or Perkins engine to make the Zone 2 Conversion mounted in the DNV Standards certificate 2.7-1 lifting frame.
Quality & Compliance:
The Kingway Ex product follow the ATEX standard EN 60079 series and EN 1834 series. The equipment will give a
BV BV will do the third party inspection, and will issue the BV third party inspection report, and make the following summary: The equipment is Cmpliant to EN60079 & related ATEX Standards and ATEX Directive 2014/34/EU, and is suitable to be used in Zone 2 IIB T3 Hazardous Area.
| Product name | ATEX Zone 2 Diesel Generator Set |
| Applicable | Hazardous area zone 1/zone 2 |
| Power/Capacity | 250KVA |
| Certification | ATEX, DNV, BV, ROHS |
| Frequency | 50HZ, 60HZ |
| Speed | 1500RPM, 1800RPM |
| Engine brand | Cumins/Perkins |
| Controller | Deepsea/ComAP |
| Installation type | Fixed or portable |
| Starting System | Electric/Hydraulic/Spring Start |
| Operating temperature | -25°C to +60°C |
![]()
![]()
![]()
![]()
![]()
![]()
![]()
